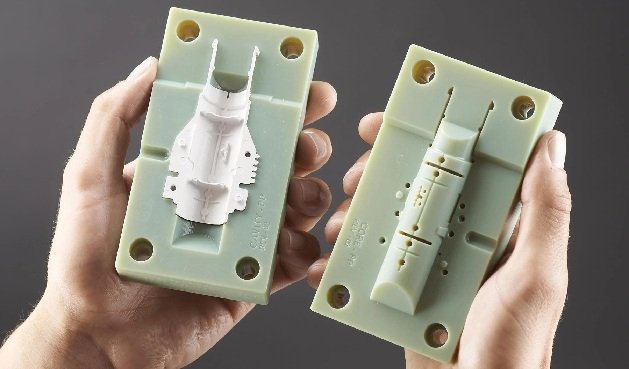

Prototype injection molding is a fast, scalable solution for creating production-like prototypes across industries like automotive, medical, and electronics. This guide covers design essentials and tips to help you streamline your next project and avoid setbacks.
Why Use Prototype Injection Molding
Injection molding isn’t just for mass production anymore. With advances in materials, tooling, and manufacturing technology, you can now use it for fast, cost-effective prototypes. The benefits include:
- Speed. Final parts can be delivered in days, not weeks or months.
- Material Options. Choose from a wide range of engineering plastics for functionality and testing.
- Functional Testing. Parts can be tested for fit, form, and function in real conditions.
- Scalability. Design insights gained at the prototype stage transfer efficiently to full-scale production.
Key Design Considerations for Prototype Molding
While prototype molds have many similarities to production tools, there are unique design factors to consider early in the process.
1. Wall Thickness and Uniformity
Maintaining consistent wall thickness is crucial for avoiding warping, sink marks, and incomplete fills. For rapid molds:
- Aim for walls between 1.0 and 3.0 mm, but consult with your manufacturer regarding the best range for your chosen material.
- Avoid abrupt changes in thickness, which can lead to weak spots or cosmetic defects.
- Use ribs or gussets to add strength instead of making walls thicker.
2. Material Selection
Prototype injection molding offers flexibility, but material choice still matters:
- Choose a material for your customized rubber parts that reflects final part requirements (strength, flexibility, chemical resistance, etc.).
- Discuss options with your supplier, as not every material is suitable for rapid tooling (e.g., highly abrasive or high-temperature plastics may limit tool life).
- Popular prototype materials include ABS, polypropylene, polycarbonate, and nylon.
3. Draft Angles
Draft refers to the slight taper added to faces perpendicular to the mold opening direction. Proper draft makes it easier to eject parts:
- Add at least 1 degree of draft to vertical surfaces, increasing draft for deeper parts or textured finishes.
- Lack of draft can result in scuffing, sticking, or damage to the mold or part.
4. Features and Complexity
While prototype tools can support a fair amount of complexity, some aspects are best simplified for prototyping:
- Limit undercuts (features that prevent straight ejection), or use side actions and inserts sparingly to save time and cost.
- Embossed or engraved logos and text should have clear edges and sufficient draft.
- Avoid ultra-fine or deep features that can complicate tool manufacturing.
5. Gate and Ejector Placement
Gates are points where molten plastic enters the cavity; ejectors push the part free:
- For prototypes, gates should be placed to minimize cosmetic marks on critical part areas.
- Anticipate ejector pin marks by locating them where function or aesthetics are least affected.
6. Tolerances
Prototype injection molding delivers much tighter tolerances than 3D printing or CNC machining for many applications, but avoid “over-engineering” tolerances:
- Specify only what’s necessary for form, fit, and function.
- Understand prototype mold tolerances may vary slightly due to rapid tooling materials or process constraints.
Tips for Accelerating Your Prototype Molding Project
- Design for Manufacturability (DFM) Review. Collaborate early with your mold maker for a DFM analysis to identify and resolve design bottlenecks.
- Material Samples. If possible, order a sample run of your selected resin to test before proceeding with the full batch.
- Part Modularity. Where possible, break complex assemblies into several parts that can be more easily molded and tested.
Prototype Molding Versus 3D Printing
You might wonder, “Why not just 3D print prototypes?” While 3D printing is excellent for early concept models, prototype injection molding offers unique advantages:
- Production-Grade Materials. Simulate production performance with real plastics.
- Surface Finish. Molded parts typically have superior surface quality and can emulate final product texture and appearance.
- Volume. For runs of 50–10,000+ parts, injection molding is often faster and more reliable than batch 3D printing.
Common Pitfalls and How to Avoid Them
Even experienced teams can run into trouble when designing prototype injection-molded parts. Watch out for:
- Overly Tight Tolerances. These can delay projects and increase tooling costs unnecessarily.
- Omitting Draft. Leads to costly tool rework and damaged parts.
- Complex Undercuts or Inserts Without Justification. Keep the prototype phase as lean as possible.
- Ignoring Post-Processing. Prototype parts may require trimming, machining, or painting after molding. Design these steps into your timeline.
Communicating With Your Molding Partner
Open communication early and often with your injection molding supplier is essential for a successful project. Provide:
- Detailed 3D CAD models and 2D drawings with all critical dimensions.
- Clear notes on surfaces that require cosmetic or functional attention.
- Information about expected test conditions and performance requirements.
Ask your supplier about their experience with similar prototypes and the types of feedback or data they provide post-run.
Conclusion
Designing for prototype injection molding is both a science and a craft. It demands attention to detail, a willingness to collaborate with manufacturing partners, and an understanding that every design decision—from wall thickness to material choice and draft angle—impacts lead times, costs, and part performance.
